Parallel Connecting EXP PRO Batteries

Parallel Connecting EXP PRO Batteries

Did you know that you can parallel connect EXP PRO batteries together to increase your capacity?

EXP48PRO battery daisy chained to another EXP48PRO battery using the provided DC power cordEXP PRO batteries can be parallel connected by using the provided DC charge cord that comes with each battery. Up to two EXP PRO batteries can be safely connected at one time.


The process is fairly simple. By using the
provided DC charge cord plug the 5mm barrel shaped end into the charge port on the battery you intend to use for powering your device. Then plug the DC end (this looks like a cigarette style plug) into the main power port marked 12V/15A on the  secondary battery. This will add more available capacity, and will allow a seamless draw of power from both batteries at one time.



How to Connect EXP240PRO Batteries in Parallel

Using our EXP PRO 10AWG parallel connector cords, you can easily connect your EXP240PRO batteries.

Simply connect the red terminals together with the red wire, and the black terminals together with the black wire.



Now that your EXP240PRO batteries are connected in parallel, they will drain at a constant rate and the battery capacity is doubled.

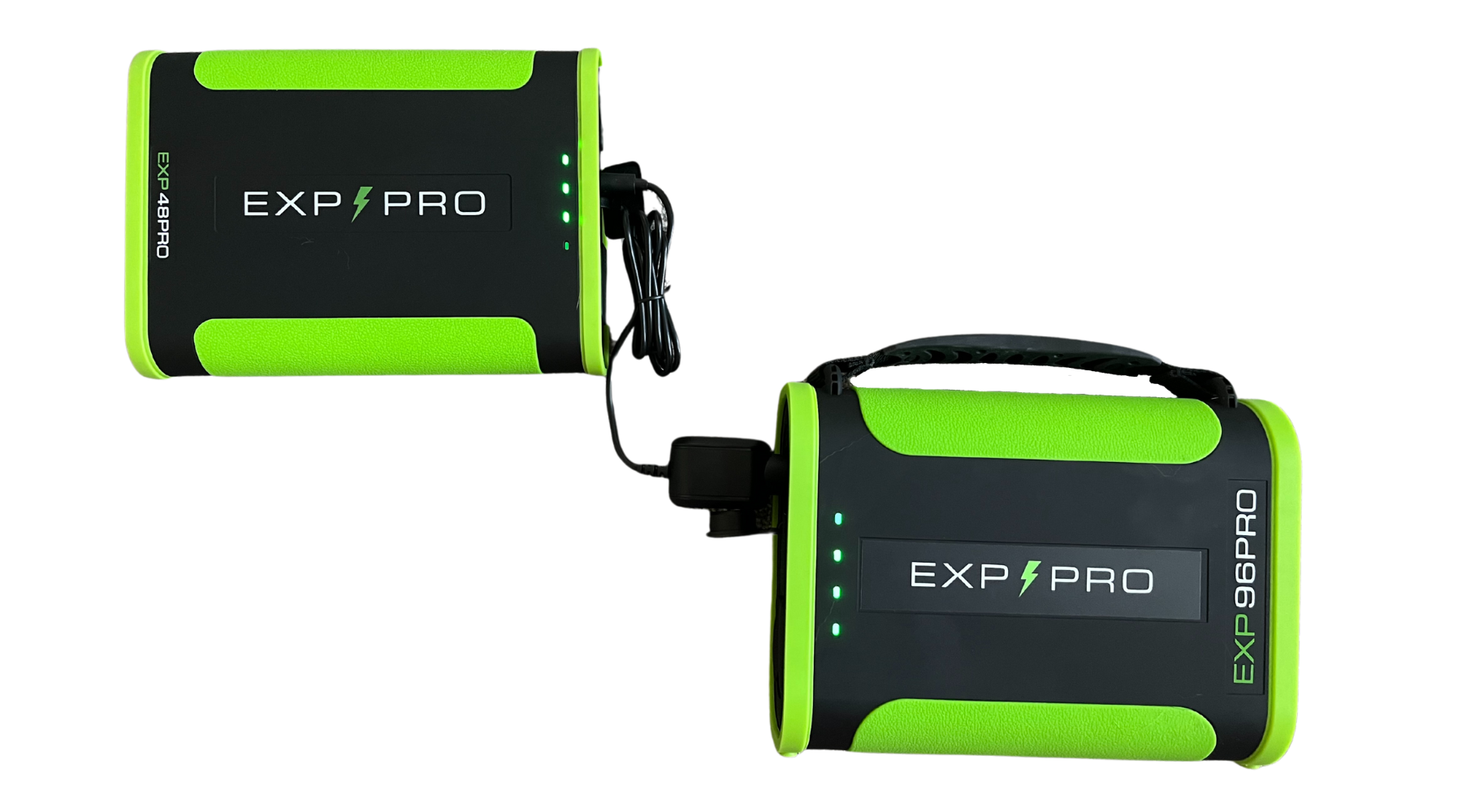

EXP48PRO battery daisy chained with an EXP96PRO battery using the provided DC power cord

Why would someone want to parallel connect two batteries together?

There are several reasons for parallel connecting batteries together. Here are a couple popular reasons we've found:

1. You're going on an airplane and need back up power where one battery won't be enough power for your adventure. Airlines have their own rules for safety. Luckily there are ways to work within these rules while still being able to bring enough power on trips. Up to two of the EXP48PRO batteries can be brought with you in your carry-on luggage. The FAA regulations state the limit is 160 watt hours (Wh), and the EXP48PRO only contains 153.6 Wh per battery. Unfortunately, the EXP96PRO battery currently exceeds this range and is not TSA compliant.



Grey backpack with 2 EXP48PRO batteries sitting in front of it
2. You currently use a CPAP machine, and have an upcoming adventure that is more than just a couple days long. If you're on CPAP, you know how difficult it is to get a restful night's sleep without using your machine. Luckily having portable power to connect to is a great way to bring your sleep therapy with you. Don't cut your adventures short! By parallel connecting two batteries together you are able to double your capacity, and therefore increase the number of nights you can sleep comfortably during your adventures. To get the most run time from the EXP PRO batteries we always recommend turning off all auxiliary features if possible. Check out our CPAP Run Time blog for more details.

Lightening bolt
Did you know that LiFePO4 battery cell chemistry is stable even in harsh temperatures? Check out this article on our LiFePO4 battery tech and why we choose to use the most environmentally friendly lithium battery technology you can buy period.

 Check out this post on Instagram to see how others utilize this battery.

The words "Power to Explore" in a black accent bar

Previous article How EXP PRO Batteries Keep Your CPAP Running During Power Outages with Pass-Through Technology
Next article How Does Temperature Affect My Battery?

Comments

EXP PRO - November 30, 2022

Kevin,
The USB-C or the 5.5×2.1 barrel port can be used to charge the battery with a solar panel. The battery can accept up to 20v @ 2.25 Amps through the USB-C port or 12-24v @ 2 Amps through the 5.5×2.1 barrel port. In addition, it’s possible to use dual charging through both of these ports simultaneously to charge the battery. Dual charging is capable of fully charging the battery in 1/3 the time compared to using a single charging method alone.

Kevin James - November 30, 2022

If a solar panel is to charge my EXP48Pro or my EXP96Pro, what input ports can I use? Can I use the Type C input/output port? Can I use the 5.5×2.1 barrel port? Can I use the 12V cigar ligheer DC port? And what is the fastest/greatest amount of power the battery can accept from a solar panel? I am looking at a variety of panels for canoe tripping where size of panel, output and versatility of panel is important, not to mention the cost of the panel. Your help with this would be much appreciated.

EXP PRO - August 26, 2022

Kevin,
When using the parallel battery hook-up, the total power (or nights of sleep) would be equal to the two batteries added together.

Kevin James - August 26, 2022

When using the parallel battery hook-up, does the extended power equal the power of each battery added linearly (e.g. – 2 nights worth from an EXP48 Pro, plus 4 nights worth from the EXP96 Pro) or is there more of a multiplying effect?

EXP PRO - August 22, 2022

Kevin,
Thanks for your question. Yes it is possible to use the parallel battery hook-up to charge two batteries at once.

Kevin James - August 22, 2022

Using the parallel battery hook-up is it possible to charge two batteries at once? I have the EXP 96 Pro and the EXP48 Pro.
